How to Upgrade OpenShift 4 between different minor versions via "oc" cli

Solution Verified - Updated 14 Jun 2024

Environment

Red Hat OpenShift Container Platform (RHOCP)
- 4.1 -> 4.2
- 4.2 -> 4.3
- 4.3 -> 4.4
- 4.4 -> 4.5
- 4.5 -> 4.6
- 4.6 -> 4.7

Issue

Upgrading OpenShift4 to the next minor version via oc cli tool.

NOTE: For fully supported releases (GA), you must use only fast, stable or eus ( Red Hat OpenShift Extended Update Support) channels, more info This page is not included, but the link has been rewritten to point to the nearest parent document.here if needed.

Resolution

NOTE: This solution uses 4.x and 4.y versions as examples, please change them accordingly. For example, if upgrading from 4.1 to 4.2, then x=1 and y=2.

IMPORTANT: If for some reason you don't see the proper upgrade path, double check the channel modification step and/or raise a case asking support, never use oc adm upgrade --force to upgrade production environments unless it was recommended by Red Hat due to some specific workaround, it could leave the cluster completely unusable/broken.

$ oc login -u <userid> -p <password> https://api.<clusterid>.<domain>:6443

NOTE: The recommendation is to use the same version of oc command than the version of the cluster you want to upgrade. The oc binary (and installer) can be downloaded from Content from mirror.openshift.com is not included.here (for x86_64), Content from mirror.openshift.com is not included.here (for s390x) or Content from mirror.openshift.com is not included.here (for ppc64le).

Confirm the general cluster status, no degraded or progressing operators, all pods running, all nodes ready, etc:

$ oc get clusterversion
$ oc get clusteroperators
$ oc get nodes -o wide
$ oc get pods -A | grep -v "Running\|Completed\|Terminated|\Succeeded"

Confirm that there are no paused mcp (refer to Disable autoreboot after a change with the machine-config-operator in OCP 4 for additional information). The paused field must be false:
```
$ oc get mcp -o yaml | grep -i pause
        paused: false
        paused: false
```

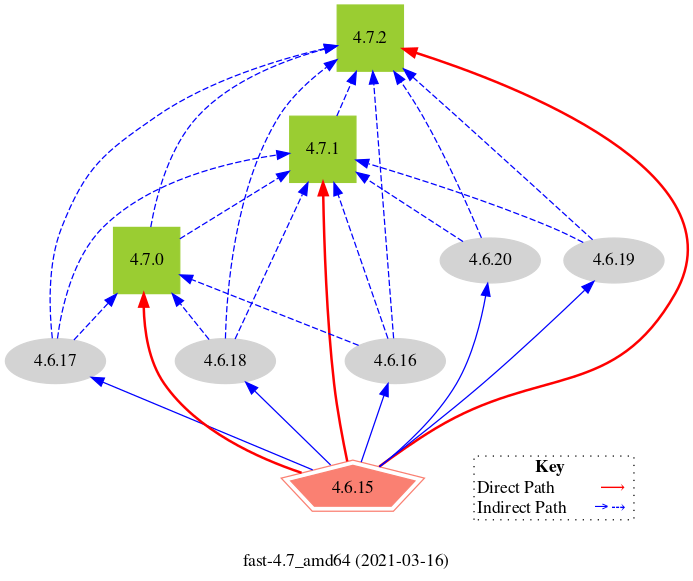

If the cluster status is ok, as expected, let's proceed to check which upgrade possibilities do we have on the fast-4.y channel (the target one) using this Content from github.com is not included.script, this will give us information about the maximum 4.x.z version that we should be running if we want to be able to proceed with the upgrade, because not always the latest 4.x version is upgradable, for example:
```
$ ocp4upc.sh 4.6.15
[INFO] Checking prerequisites (curl jq dot)... [SUCC]
[INFO] Checking if '4.6.15' (amd64) is a valid release... [SUCC]
[INFO] Detected mode '4.x.z', targeting channels '4.7' for upgrade path generation.
[WARN] Skipping channel 'eus-4.7_amd64', it's empty.
[WARN] Skipping channel 'stable-4.7_amd64', version not found.
[INFO] Result exported as 'fast-4.7_4.6.15_amd64_20210316.svg'
```

IMPORTANT: The following graph is just a static photo for example purposes, don't rely on it and generate your own one, the paths can change daily.

NOTE: There are more recent tools that provide a dynamic graph like This content is not included.ocpupgradegraph or Content from ctron.github.io is not included.openshift-update-graph if needed.

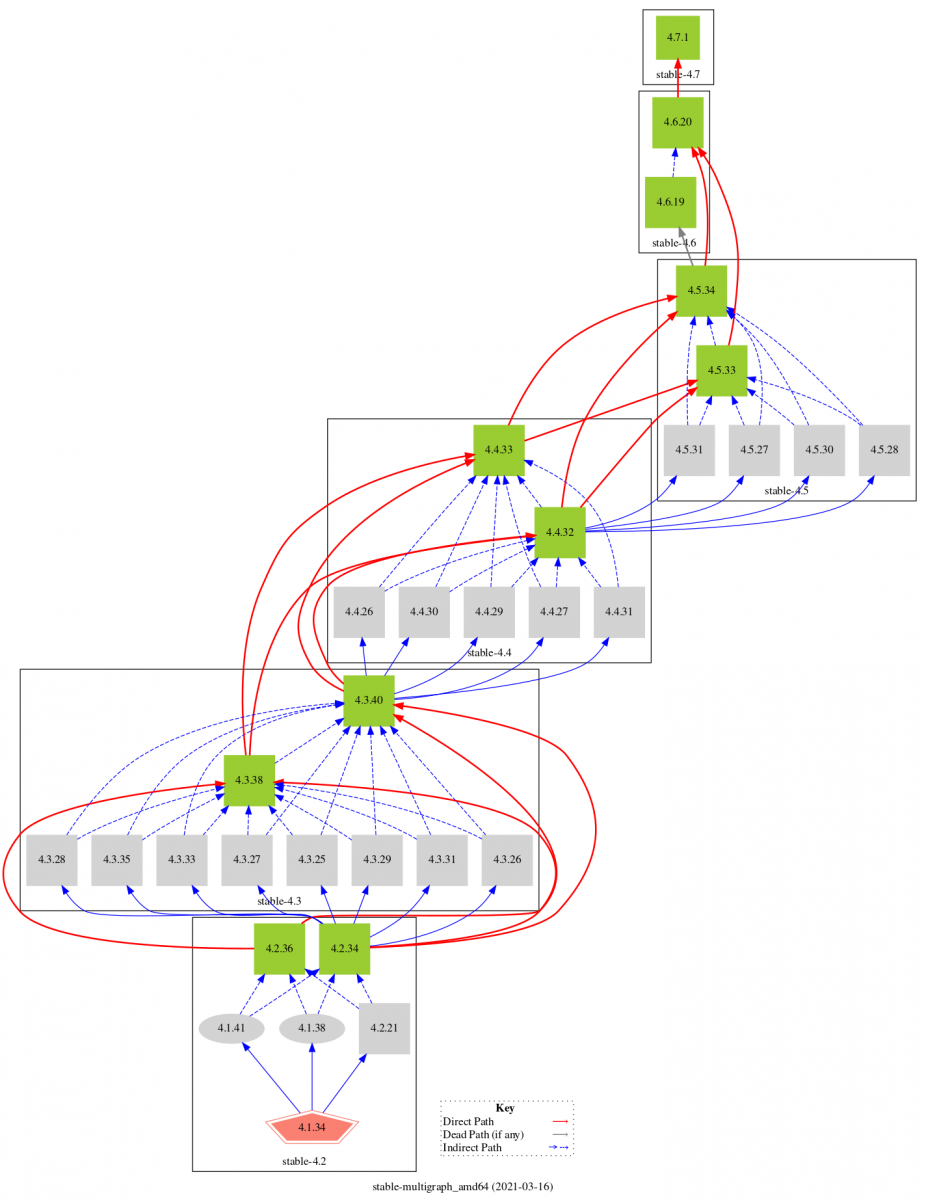

(Optional) If needed, the same Content from github.com is not included.script can now also provide a multigraph result that goes across all the intermediate versions as follows:

$ ocp4upc.sh 4.1.34-4.7
[INFO] Checking prerequisites (curl jq dot)... [SUCC]
[INFO] Checking if '4.1.34' (amd64) is a valid release... [SUCC]
[INFO] Detected mode '4.x.z-', targeting channels '4.2 4.3 4.4 4.5 4.6 4.7' for multigraph generation.
[INPT] Select channel from [stable fast eus], press Enter for default value (stable):
[INPT] Select max depth between [1-9], press Enter for default value (2):
[WARN] Targeting '6' diff minor versions with '2' releases per target (12 edges), please be patient.
[INFO] Processing 'stable-4.2' edges...
[INFO] Processing 'stable-4.3' edges...
[INFO] Processing 'stable-4.4' edges...
[INFO] Processing 'stable-4.5' edges...
[INFO] Processing 'stable-4.6' edges...
[INFO] Processing 'stable-4.7' edges...
[WARN] Skipping file 'stable-4.7_4.6.19.gv', version not found.
[INFO] Result exported as 'stable-multigraph_4.1.34-4.7_amd64_20210316.svg'

Once determined in the graph which 4.x.z version we need to have in order to reach the desired 4.y (usually the latest one), let's proceed with the upgrade without changing your current 4.x channel (the 4.x.z versions showed in the fast-4.y channel are also available in your current stable-4.x channel at this point), for example:
```
$ oc adm upgrade --to=4.x.z
```
- OR (recommended):
```
$ oc adm upgrade --to-latest
```

NOTE: The recommended operation is to use oc adm upgrade --to-latest, but sometimes the upgrade paths can be temporarily disabled due to issues with specific versions. If you must update to the next minor version as quickly as possible, check the current graph to determine your best path (and hope that no further problems lead to updates along your path being pulled). If you end up in a dead end due to pulled edges, it's likely that the next release will restore a path to the next minor version, and for fast and stable channels, Red Hat is committed to providing a path to the next minor version at some point.

Wait until the upgrade finish, my personal recommendation to supervise the upgrade from the oc cli is to use the following command combination, this will give you a general cluster status every 10 seconds:
```
$ watch -n10 "oc get clusterversion && echo && oc get co && echo && oc get nodes -o wide"
```

NOTES: During some upgrade steps, the previous command can output the message error: You must be logged in to the server (Unauthorized), this is expected, it will properly refresh on the next run. Also, the percentage showed by oc adm upgrade command can start again from 1% during some upgrade steps like machine-config, this is also an expected behaviour, don't worry about that.

(Important) Once the cluster is successfully upgraded to desired 4.x.z version, confirm again the cluster general status before continuing.

(Required) Change now the cluster channel as follows (remember to properly change 4.y with your target version):

$ oc patch clusterversion/version -p '{"spec":{"channel":"stable-4.y"}}' --type=merge

$ oc patch clusterversion/version -p '{"spec":{"channel":"fast-4.y"}}' --type=merge

NOTE: The channel selection will depend on the previous generated graphs and the upgrade path you prefer or need to take, while the fast-4.y channel contains releases as soon as their errata are published, releases are added to the stable-4.y channel after a few days, on this manner, more data is collected from Red Hat SRE teams, Red Hat support services, and pre-production and production environments that participate in connected customer program about the stability of the release, more info here.

(Optional) Confirm the new upgrade paths visibility:
```
$ oc adm release info
$ oc adm upgrade
```

Upgrade now to desired version 4.y.z:

$ oc adm upgrade --to=4.y.z

OR (recommended)

$ oc adm upgrade --to-latest

NOTE: This upgrade can take much longer than previous 4.x.z (specially the machine-config part), please be patient and properly monitor the cluster status with the command combination posted above if needed.

Once the cluster is successfully upgraded to version 4.y.z, confirm again the cluster general status.
(Optional but recommended) If upgraded using fast-4.y to take advantage of a newer path not yet available within stable-4.y, you can also return to stable after that if you prefer (default channel), the newer versions within fast will also be available in stable after a few days.
```
$ oc patch clusterversion/version -p '{"spec":{"channel":"stable-4.y"}}' --type=merge
```

NOTE: Remember to properly change 4.y with your target version.

Root Cause

There is no oc cli upgrade documentation when using different upgrade channels and this could be useful.

General cli upgrade documentation

Diagnostic Steps

How to cancel an upgrade once started:

$ oc adm upgrade --clear

NOTE: An upgrade can only be canceled if it's still in the download phase, which usually lasts a few seconds (depending on your network bandwidth).

How to confirm which channel we have configured:

$ oc get clusterversion/version -o jsonpath={.spec.channel}

How to see the release info:

$ oc adm release info

How to check which upgrades are available in the current channel (without upgrading):

$ oc adm upgrade
