How do I keep Red Hat Virtualization (RHV) host and manager certificates current?

Solution Verified - Updated 22 Jul 2024

Environment

Red Hat Virtualization (RHV) 4.4 and newer

Issue

My RHV SSL host and manager certificates are due to expire soon - how do I renew them?

Resolution

Use the Red Hat Virtualization Manager (RHV-M) administrative portal to renew host SSL certificates before they expire.
- Navigate to Compute > Hosts and select the host to update.
- Migrate all VMs away from that host.
- Click Management > Maintenance to put the host into Maintenance mode.
- Click Installation > Enroll Certificate.
- After the enrollment finishes, activate this host. Click Management > Activate.
- If RHV host certificates expire, the manual renewal process is tedious and prone to errors. Do not let host certificates expire.
- But if they do expire, from RHV 4.4 SP1, it is possible to use the Enroll Certificate from the RHV-M administrative portal when the host is in NonResponsive status. For versions below 4.4 SP1, see how to manually renew expired RHV host SSL certificates and then follow the steps above to properly enroll RHV host certificates.
You must also renew RHV-M certificates
- For Hosted Engine, put the environment into global maintenance mode. Login to an ssh or console session on a hosted-engine eligible hypervisor as root and issue this command:
  # hosted-engine --set-maintenance --mode=global
- For both Hosted Engine and standalone RHV-M deployments:
  - Log on to the RHV-M system as root from an ssh, console, or other terminal session.
  - Update certificates with # engine-setup --offline
    - Answer its questions appropriately or use an answers file.
    - Be sure to answer the question about renewing certificates with "Y".
    - With Hosted Engine, this may fail in unusual situations. See Why engine-setup fails while checking "Global Maintenance" even when the HE environment is in Maintenance mode for a solution.
- For Hosted Engine, take the environment out of global maintenance mode. From your ssh or console session on a hosted-engine eligible hypervisor as root and issue this command:
  # hosted-engine --set-maintenance --mode=none
- If you want to also apply updates, follow the procedure in the Upgrade Guide.

Versions of 4.4 prior to 4.4 SP1 must manually renew more certificates.

Find certificates not yet renewed with cert_date.sh from How to check when RHV certificates expire?

Run cert_date.sh from a terminal session logged in as root on RHV-M.
See Diagnostic Steps below or KCS 6958665 for how to set it up.

        [root@rhvm2 ~]# ./cert_date.sh
        This script will check certificate expiration dates

        Checking RHV-M Certificates...
        =================================================
          /etc/pki/ovirt-engine/ca.pem:                          Jun  5 19:10:54 2032 GMT
          /etc/pki/ovirt-engine/certs/apache.cer:                Jul 25 13:18:22 2024 GMT <- updated
          /etc/pki/ovirt-engine/certs/engine.cer:                Jul 25 13:18:21 2024 GMT <- updated
          /etc/pki/ovirt-engine/qemu-ca.pem                      Jun  5 19:10:56 2032 GMT
          /etc/pki/ovirt-engine/certs/websocket-proxy.cer        Jul 25 13:18:22 2024 GMT <- updated
          /etc/pki/ovirt-engine/certs/jboss.cer                  Jul 25 13:18:21 2024 GMT <- updated
          /etc/pki/ovirt-engine/certs/ovirt-provider-ovn         Jul 11 19:10:56 2023 GMT <- not updated
          /etc/pki/ovirt-engine/certs/ovn-ndb.cer                Jul 11 19:10:56 2023 GMT <- not updated
          /etc/pki/ovirt-engine/certs/ovn-sdb.cer                Jul 11 19:10:56 2023 GMT <- not updated
          /etc/pki/ovirt-engine/certs/vmconsole-proxy-helper.cer Jul 11 19:11:23 2023 GMT <- not updated
          /etc/pki/ovirt-engine/certs/vmconsole-proxy-host.cer   Jul 11 19:11:24 2023 GMT <- not updated
          /etc/pki/ovirt-engine/certs/vmconsole-proxy-user.cer   Jul 11 19:11:23 2023 GMT <- not updated
          ...

To renew RHV-M OVN certificates, see [RHV] ovirt-provider-ovn certs aren't renewed with engine-setup.
To renew RHV-M VMconsole-proxy certificates, see vmconsole-proxy-user certificate expired - cannot serial console.

Use the same cert_date.sh script to check hypervisor host certificates.

        [root@rhvm2 ~]# ./cert_date.sh
        This script will check certificate expiration dates
        ...
        Checking Host Certificates...

        Host: myhost.example.com
        =================================================
          /etc/pki/vdsm/certs/vdsmcert.pem:              Jul 25 18:29:36 2024 GMT <- updated
          /etc/pki/vdsm/libvirt-spice/server-cert.pem:   Jul 25 18:29:36 2024 GMT <- updated
          /etc/pki/vdsm/libvirt-vnc/server-cert.pem:     Jul  9 14:17:19 2023 GMT <- not updated
          /etc/pki/libvirt/clientcert.pem:               Jul 25 18:29:36 2024 GMT <- updated
          /etc/pki/vdsm/libvirt-migrate/server-cert.pem: Jul 25 18:29:37 2024 GMT <- updated

For hypervisor hosts where the libvirt certificate did not renew, login on each host as root and follow these steps to fix it.

[root@dell-r640-04 ~]# cp -p /etc/pki/vdsm/keys/vdsmkey.pem /etc/pki/vdsm/libvirt-vnc/server-key.pem
[root@dell-r640-04 ~]# cp -p /etc/pki/vdsm/certs/vdsmcert.pem /etc/pki/vdsm/libvirt-vnc/server-cert.pem

Ovirt-engine versions between 4.4.3.8 and 4.5.0 used a 398 day (13 month) certificate lifetime for all certificates. For these versions, if you wish to give new VDSM certificates a five year lifetime, follow these steps:
- For Hosted Engine, put the environment into global maintenance mode. Login to an ssh or console session on a hosted-engine eligible hypervisor as root and issue this command:
  # hosted-engine --set-maintenance --mode=global
- For both Hosted Engine and standalone RHV-M deployments, set up ssh, console, or other terminal session to your RHV-M system. Login as root.
- Confirm the version with rpm -qa | grep ^ovirt-engine-4
- Update the engine configuration to generate VDSM certificates with a validity period of 5 years:
  # /usr/share/ovirt-engine/dbscripts/engine-psql.sh -c "update vdc_options set option_value='1827' where option_name='VdsCertificateValidityInDays';"
- Restart the ovirt-engine service.
  # systemctl restart ovirt-engine
- For Hosted Engine, take the environment out of global maintenance mode. Login to an ssh or console session on a hosted-engine eligible hypervisor as root and issue this command:
  # hosted-engine --set-maintenance --mode=none

Root Cause

Disclaimer: Links contained herein to external website(s) are provided for convenience only. Red Hat has not reviewed the links and is not responsible for the content or its availability. The inclusion of any link to an external website does not imply endorsement by Red Hat of the website or their entities, products or services. You agree that Red Hat is not responsible or liable for any loss or expenses that may result due to your use of (or reliance on) the external site or content.

Content from blog.mozilla.org is not included.The industry SSL standard certificate lifetime changed in 2020 from five years to 398 days.

RHV versions prior to 4.4 issued certificates with a five year lifespan.
Earlier versions of RHV 4.4 issued certificates with a 398 day lifespan.
RHV 4.4 SP1 changed the lifespan for internal certificates between the Engine and hypervisors to five years.
Certificates visible to web browsers will still last 398 days per the new Mozilla certificate lifetime standard.
398 days = one year + one day for leap years + one month + 1 extra day = 365 + 1 + 31 + 1.

Diagnostic Steps

To check the validity period for new internal certificates with RHV 4.4 SP1, use engine-config. From a terminal session to RHV-M, run:
```
# engine-config -a 2>/dev/null | egrep 'CertificateValidity|CertExpiration' | sort
CertExpirationAlertPeriodInDays: 30 version: general
CertExpirationWarnPeriodInDays: 365 version: general
VdsCertificateValidityInDays: 1827 version: general
```
The above example also shows when RHV-M will WARN and ALERT about upcoming certificate expiry events. This only works with RHV-M 4.4 SP1.
To check the expiration date for existing host and Engine certificates:
- Download the cert_date.sh script. Save it as cert_date.sh.
- Copy it to a convenient directory on your RHV-M system.
- Log on to your RHV-M system as any convenient user and cd to the directory where you saved cert_date.sh.
- Make it executable chmod 755 ./cert_date.sh
- Run it on your RHV-M system. ./cert_date.sh

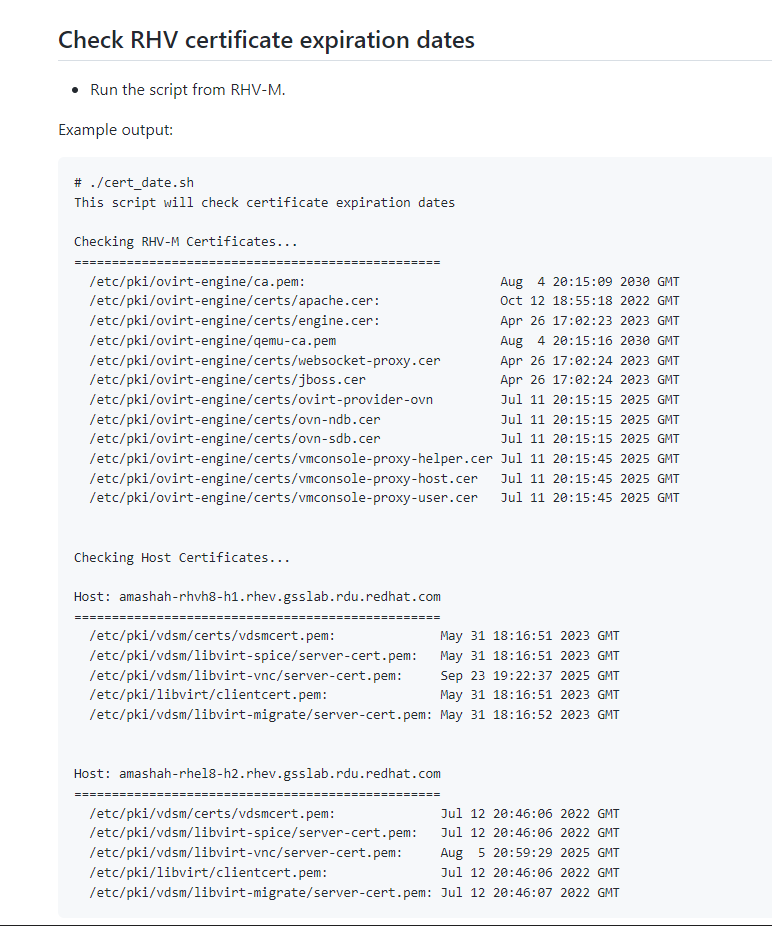

- See the sample cert_date.sh script output.
- See KCS 6958665 for more information about the cert_date.sh script.
If a host certificate expires,
- Virtual machine consoles for VMs on that host will fail.
- The host will show Non-operational in the RHV Administrative Portal.
- RHV-M will be unable to manage virtual machines on this host. No migrations, no status updates, no starting new VMs or stopping old VMs.
If RHV-M certificates expire,
- The RHV-M and other portal websites will fail to load.
RHV 4.4 SP1 will send warning notifications, starting 120 days before certificate expiration. It will send error notifications starting with 30 days left.
