Generating and analyzing JFR in Data Grid 8 in OCP

Environment

• Red hat OpenShift Container Platform (OCP)
  • 4.x
• Red Hat Data Grid (RHDG)
  • 8.x
  • Operator

Issue

How to create a JFR in Data Grid 8 in OCP?
How to analyze the JFR created in Data Grid 8 in OCP?

Resolution

Below described the process without jcmd:

1. Set StartFlightRecording in spec.extraJvmOpts:

    extraJvmOpts: '-Xlog:gc*=info:file=/tmp/gc.log:time,level,tags,uptimemillis:filecount=10,filesize=1m  -XX:StartFlightRecording=duration=200s,filename=flight.jfr'


2. The file flight.jfr will be on /opt/infinispan:

   oc rsh $podname
   sh-4.4$ ls
   Copyright.txt  README.adoc  bin  boot  diag  docs  flight.jfr <-- lib  server  static  version.txt


3. Fetch the file from pod to local: oc cp $podname:/opt/infinispan/flight.jfr .

   oc cp dg-cluster-jfr-0:/opt/infinispan/flight.jfr .

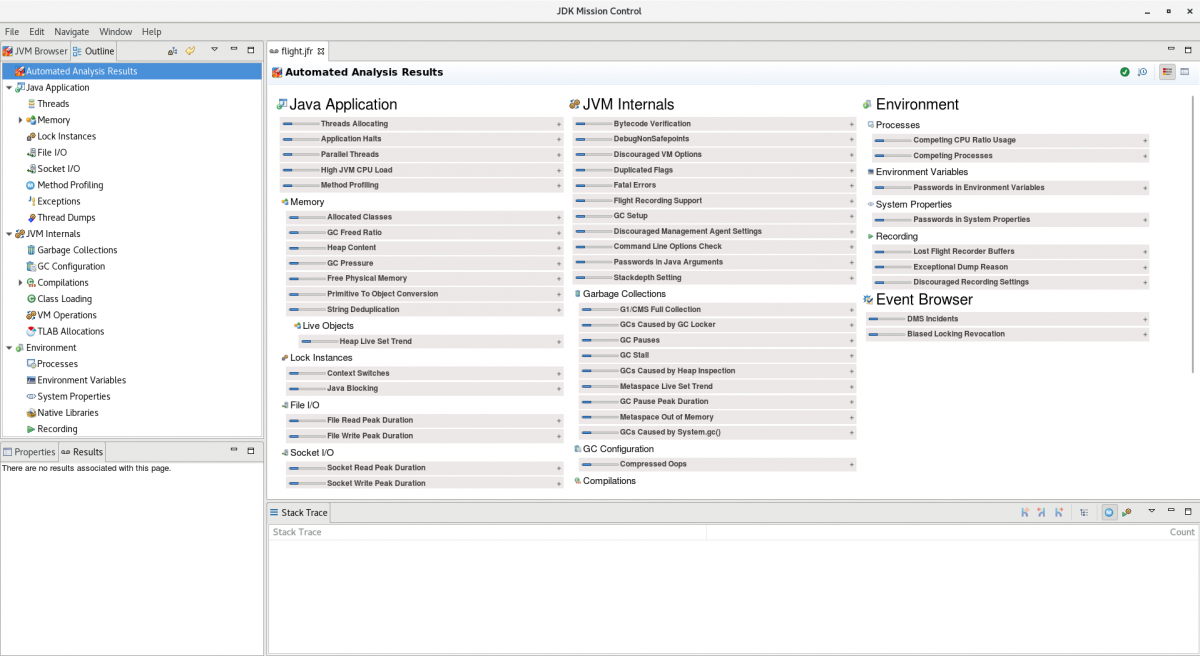

4. To analyze it, open in Java Mission Control:

./jmc <-- open the file

Example:

Cryostat

Currently DG Operator 8.3.x does not have a seamless integration with JMX.

Root Cause

As explained on solution How to use JDK Flight Recorder (JFR) one can start a recording of JFR file via jcmd or set the JVM to start already with it via StartFlightRecording. The example above describe StartFlightRecording usage.
For alternatives to create a heap dump, see Alternatives for creating heap dump in a DG 8 even without the JDK](https://access.redhat.com/solutions/6964022).

Options for collecting JFR files

Adequate situations for using JFR files

• Investigation of heap memory (leaks, usage)
• Thread usage investigation
• class/object investigation

Not adequate situations for using JFR files

• if JMX is not enabled by default and cannot use the flag StartFlightRecording
• Using JFR one can can see how much physical memory is being used, however not what is using it in native/outside of java.
• Force a Full GCs (used for Full heap investigations)
• To collect and show thread dumps on the spot (one first collect JFR file, then sees it)

For those scenarios above:
Use jcmd command see Alternatives for creating heap dump in a DG 8 even without the JDK in case the image does not have jcmd binary.
